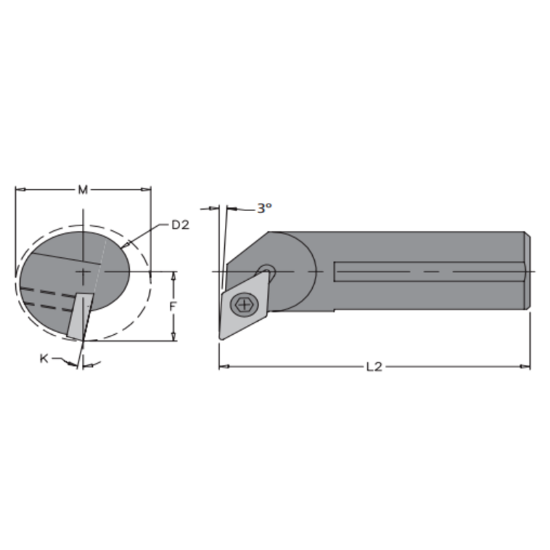

Picture of EVEREDE Tool A10S SDUCL-2 55.0 ° Boring Bar Dia0.6250 Positive 0.6250 15.88MM - 5/8 Cutter Dia

EVEREDE Tool A10S SDUCL-2 55.0 ° Boring Bar Dia0.6250 Positive 0.6250 15.88MM - 5/8 Cutter Dia

ANSI: A10S SDUCL-2

ISO: A10S SDUCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01450
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 93°
Overall Len 10.0000 254.00MM
Insert Size Ic 07 "21"
Cutter Dia 0.6250 15.88MM - 5/8
Min Bore 0.8500
Clearance Angle 30.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Cool Sply Type Through
Inter/Extern Internal
Insert Style DC
Coolant Thru Yes
