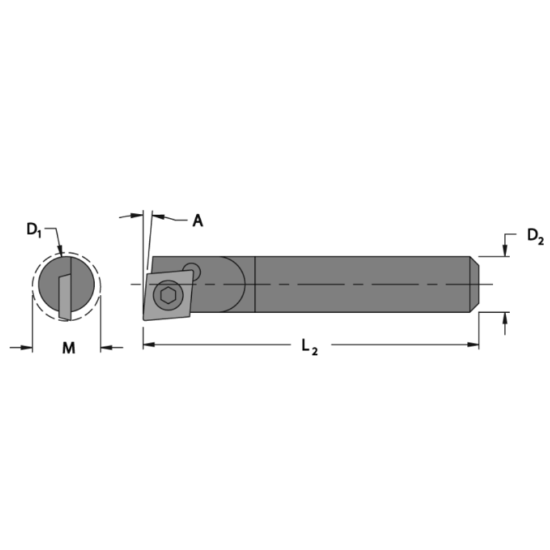

Picture of EVEREDE Tool 134 80.0 ° Boring Bar Dia0.2500 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

EVEREDE Tool 134 80.0 ° Boring Bar Dia0.2500 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: CA1315

ISO: CA1315L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00134
Delivery date: 3-5 days
$213.01
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Insert Type Positive
Application Int.Turning
Package Size 1
Dimensional Specifications
Cutter Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Boring Bar
Min Bore 0.3000
Overall Len 6.0000 152.40MM
Insert Size Ic 12
Lead Angle 90°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Cutting & Machining Properties
Insert Style CD
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
