  • EVEREDE Tool 1263 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.2080 56.08MM Cutter Dia

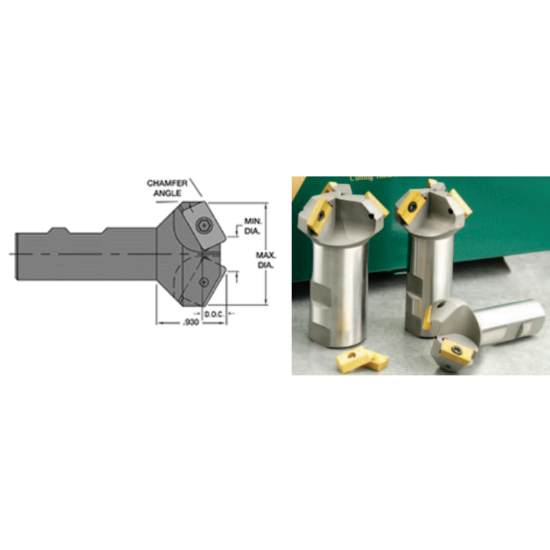

Picture of EVEREDE Tool 1263 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.2080 56.08MM Cutter Dia

EVEREDE Tool 1263 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.2080 56.08MM Cutter Dia

ANSI: CHM-1.250-6

ISO: CHM-1.250-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01263
Delivery date: 3-5 days
$208.80
Products specifications
Attribute name Attribute value
General Product Information
Application Chamfering
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2770
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Insert Size Ic 16
Cutter Dia 2.2080 56.08MM
Flutes/Inserts 3
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Overall Len 3.6000 91.44MM
Cut Dia Max 2.2080 56.08MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
