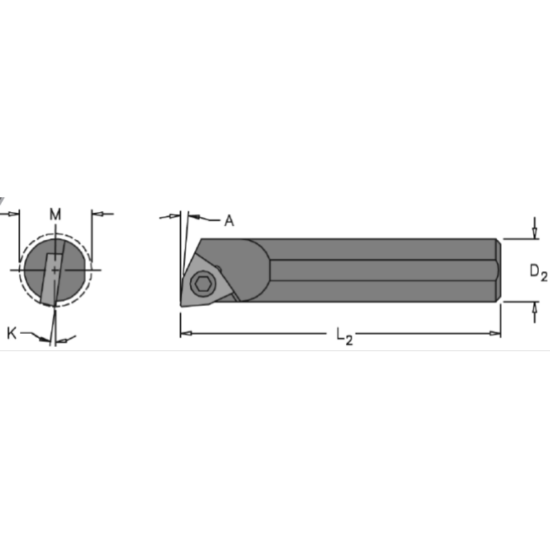

Picture of EVEREDE Tool 00685CH Trigon Boring Bar Dia0.2500 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

EVEREDE Tool 00685CH Trigon Boring Bar Dia0.2500 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: HE5315CH

ISO: HE5315CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00685CH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.2500 6.35MM
Lead Angle 90°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 6.0000 152.40MM
Insert Size Ic 1.2
Cutter Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Boring Bar
Min Bore 0.3000
Tool Material Heavy Metal
Cutting & Machining Properties
Cool Sply Type Through
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WC
Coolant Thru Yes
Hand R/L Right
