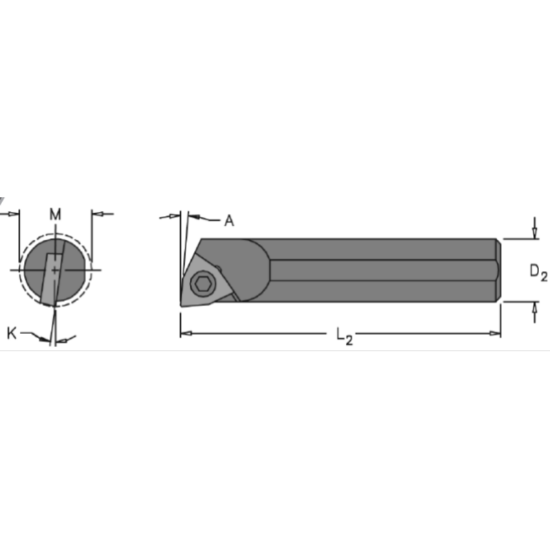

Picture of EVEREDE Tool 00675CH Trigon Boring Bar Dia0.1875 Positive 0.1870 4.75MM Cutter Dia

EVEREDE Tool 00675CH Trigon Boring Bar Dia0.1875 Positive 0.1870 4.75MM Cutter Dia

ANSI: HE5220CH

ISO: HE5220CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00675CH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cutter Dia 0.1870 4.75MM
Tool Material Heavy Metal
Min Bore 0.2440
Machine Side Connection Size 0.1875 4.76MM
Overall Len 4.0000 101.60MM
Lead Angle 90°
Insert Size Ic 1.2
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern Internal
Cool Sply Type Through
Hand R/L Right
Insert Style WC
