Picture of EVEREDE Tool 00673CH Trigon Boring Bar Dia0.1875 Positive 0.1870 4.75MM Cutter Dia

EVEREDE Tool 00673CH Trigon Boring Bar Dia0.1875 Positive 0.1870 4.75MM Cutter Dia

ANSI: HE5215LCH

ISO: HE5215LCH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00673CH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Turning
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois

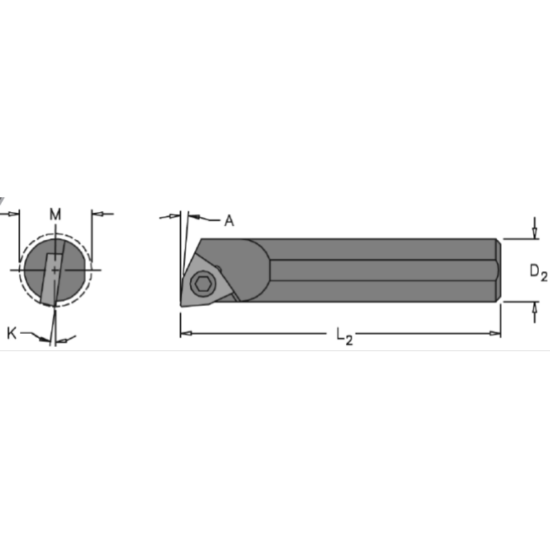

Dimensional Specifications
Insert Size Ic 1.2
Machine Side Connection Size 0.1875 4.76MM
Lead Angle 95°
Min Bore 0.2300
Machine Side Connection Type Boring Bar
Cutter Dia 0.1870 4.75MM
Tool Material Heavy Metal
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Hand R/L Left
Insert Style WC
Coolant Thru Yes
Inter/Extern Internal
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Trigon
