Picture of EVEREDE Tool 00523CH Triangle Boring Bar Dia0.7500 Positive 0.6250 15.88MM - 5/8 Cutter Dia

EVEREDE Tool 00523CH Triangle Boring Bar Dia0.7500 Positive 0.6250 15.88MM - 5/8 Cutter Dia

ANSI: SC3090CH

ISO: SC3090CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00523CH
Delivery date: 3-5 days
$127.81
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Int.Turning
Insert Type Positive
Insert/Tool Tool

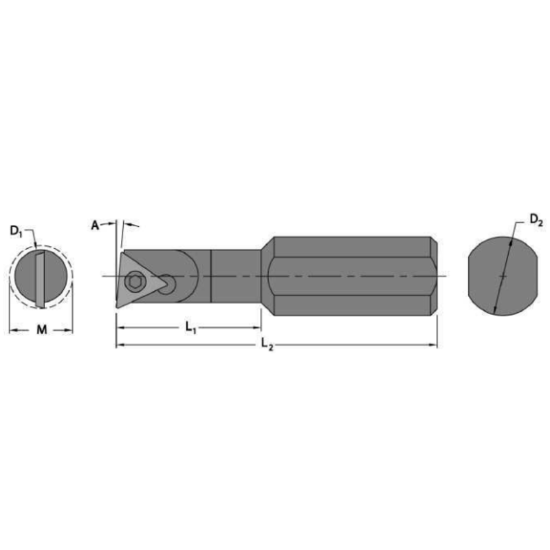

Dimensional Specifications
Overall Len 4.5000 114.30MM
Machine Side Connection Type Boring Bar
Insert Size Ic 21
Lead Angle 95°
Cutter Dia 0.6250 15.88MM - 5/8
Min Bore 0.6880
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Inter/Extern Internal
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
