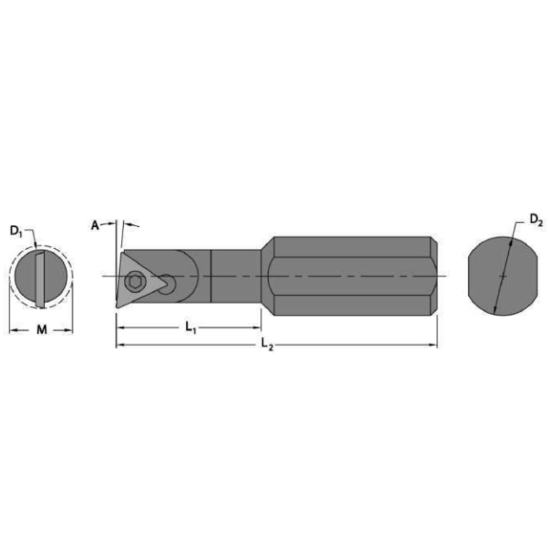

Picture of EVEREDE Tool 00503CH Triangle Boring Bar Dia0.6250 Positive 0.3750 9.53MM - 3/8 Cutter Dia

EVEREDE Tool 00503CH Triangle Boring Bar Dia0.6250 Positive 0.3750 9.53MM - 3/8 Cutter Dia

ANSI: SC3040CH

ISO: SC3040CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00503CH
Delivery date: 3-5 days
$119.31
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Min Bore 0.4380
Insert Size Ic 21
Overall Len 3.7500 95.25MM
Machine Side Connection Type Boring Bar
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 95°
Cutting & Machining Properties
Insert Style TP
Coolant Thru Yes
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through
