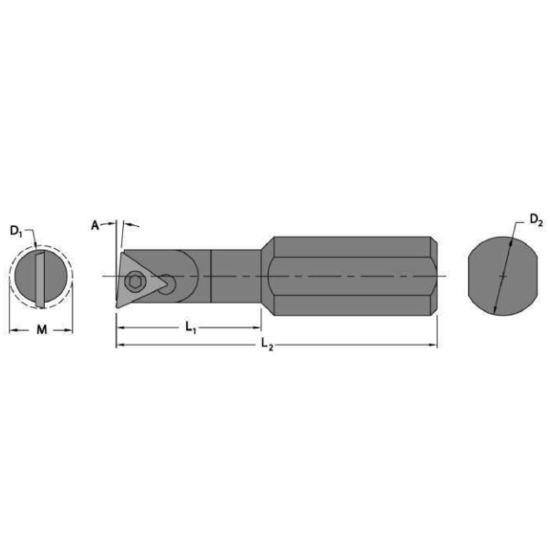

Picture of EVEREDE Tool 00502CH Triangle Boring Bar Dia0.5000 Positive 0.3750 9.53MM - 3/8 Cutter Dia

EVEREDE Tool 00502CH Triangle Boring Bar Dia0.5000 Positive 0.3750 9.53MM - 3/8 Cutter Dia

ANSI: SC3035LCH

ISO: SC3035LCH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00502CH
Delivery date: 3-5 days
$110.81
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Lead Angle 90°
Machine Side Connection Size 0.5000 12.70MM
Min Bore 0.4380
Overall Len 4.0000 101.60MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Insert Size Ic 21
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through
Inter/Extern Internal
Insert Style TP
Hand R/L Left
Coolant Thru Yes
