Picture of EVEREDE Tool 00373CH Triangle Boring Bar Dia0.6250 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

EVEREDE Tool 00373CH Triangle Boring Bar Dia0.6250 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: SB2535LCH

ISO: SB2535LCH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00373CH
Delivery date: 3-5 days
$113.23
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Type Positive
Application Int.Turning
Made In USA No
Insert Application General Purpose
Shipping State Illinois

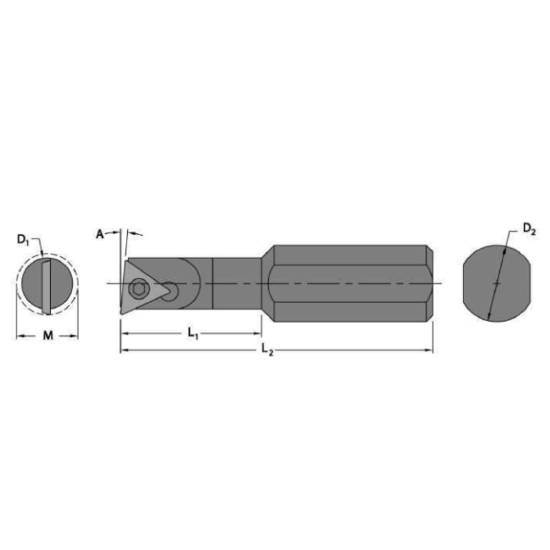

Dimensional Specifications
Overall Len 4.0000 101.60MM
Cutter Dia 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 90°
Machine Side Connection Type Boring Bar
Tool Material Steel
Min Bore 0.3000
Insert Size Ic 07 "13"
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru Yes
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through
Hand R/L Left
