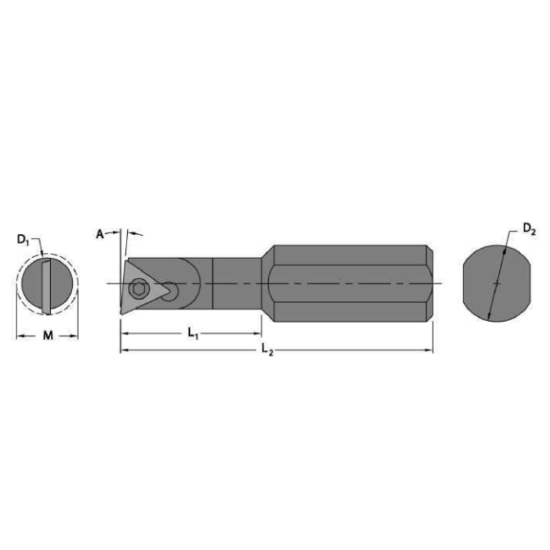

Picture of EVEREDE Tool 00358CH Triangle Boring Bar Dia0.5000 Positive 0.3120 7.92MM Cutter Dia

EVEREDE Tool 00358CH Triangle Boring Bar Dia0.5000 Positive 0.3120 7.92MM Cutter Dia

ANSI: SB2455LCH

ISO: SB2455LCH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00358CH
Delivery date: 3-5 days
$110.81
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Package Size 1
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 3.0000 76.20MM
Tool Material Steel
Machine Side Connection Size 0.5000 12.70MM
Min Bore 0.3600
Lead Angle 90°
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 07 "13"
Cutter Dia 0.3120 7.92MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Cool Sply Type Through
Hand R/L Left
