Picture of EVEREDE Tool 00324CH Triangle Boring Bar Dia0.3125 Positive 0.3000 7.62MM Cutter Dia

EVEREDE Tool 00324CH Triangle Boring Bar Dia0.3125 Positive 0.3000 7.62MM Cutter Dia

ANSI: HB2215CH

ISO: HB2215CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00324CH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Package Size 1

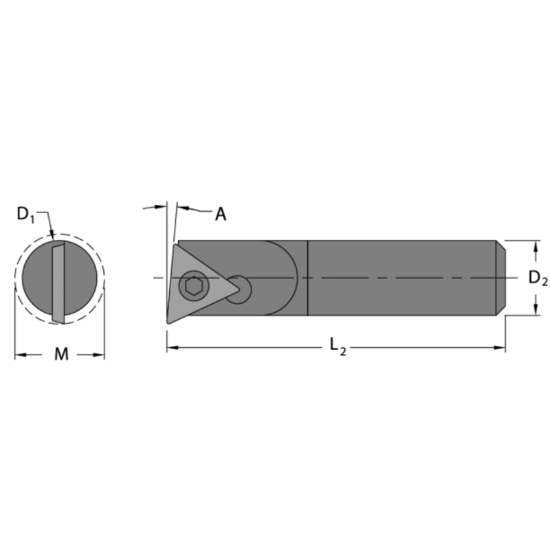

Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Min Bore 0.3000
Lead Angle 90°
Cutter Dia 0.3000 7.62MM
Insert Size Ic 07 "13"
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Tool Material Heavy Metal
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Cool Sply Type Through
Insert Style TD
Hand R/L Right
