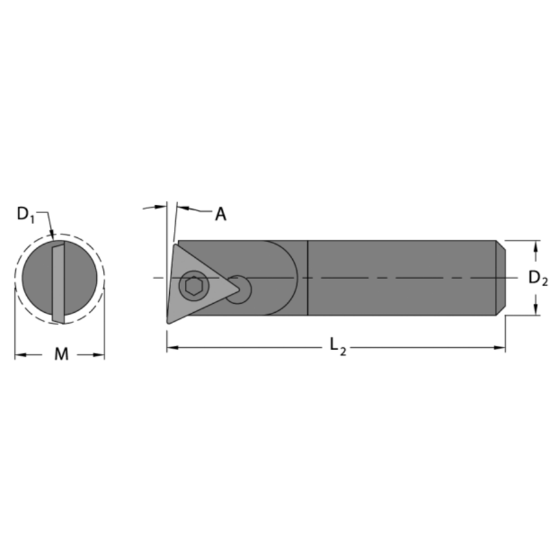

Picture of EVEREDE Tool 00317CH Triangle Boring Bar Dia0.1875 Positive 0.2700 6.86MM Cutter Dia

EVEREDE Tool 00317CH Triangle Boring Bar Dia0.1875 Positive 0.2700 6.86MM Cutter Dia

ANSI: HB1915CH

ISO: HB1915CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00317CH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Min Bore 0.2700
Overall Len 6.0000 152.40MM
Lead Angle 90°
Machine Side Connection Size 0.1875 4.76MM
Tool Material Heavy Metal
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Insert Size Ic 07 "13"
Cutter Dia 0.2700 6.86MM
Cutting & Machining Properties
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through
Coolant Thru Yes
Insert Style TD
