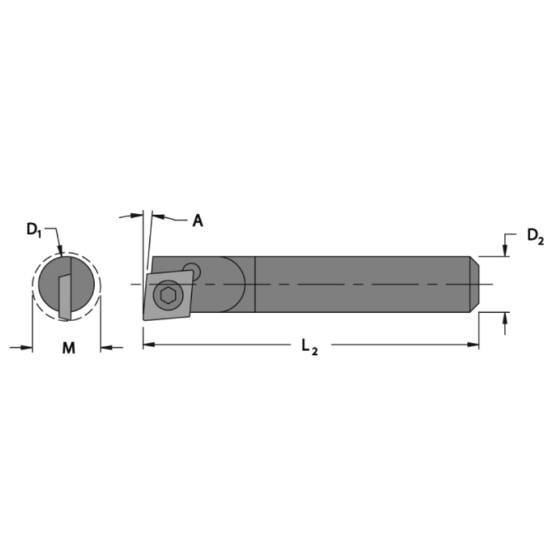

Picture of EVEREDE Tool 00161CH 80.0 ° Boring Bar Dia0.1650 Positive 0.1650 4.19MM Cutter Dia

EVEREDE Tool 00161CH 80.0 ° Boring Bar Dia0.1650 Positive 0.1650 4.19MM Cutter Dia

ANSI: SA1000CH

ISO: SA1000CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00161CH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.1650 4.19MM
Shank/Pilot Dia 0.1650 4.19MM
Overall Len 2.5000 63.50MM
Insert Size Ic 4T "12"
Cutter Dia 0.1650 4.19MM
Lead Angle 97°
Min Bore 0.1800
Cutting & Machining Properties
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Insert Style CD
Coolant Thru Yes
