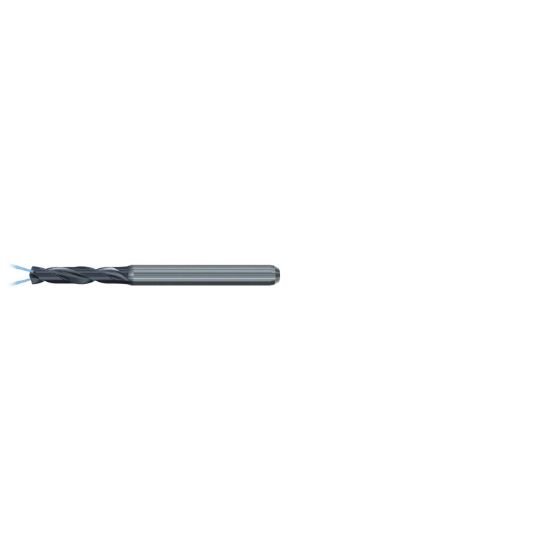

Picture of Emuge TE213324.0100 Carbide Drill Coolant Thru Carbide 140° 0.039 Diameter 0.157 Shank 2.165 OAL 2.165 Flute 2 Flute TiAlN

Emuge TE213324.0100 Carbide Drill Coolant Thru Carbide 140° 0.039 Diameter 0.157 Shank 2.165 OAL 2.165 Flute 2 Flute TiAlN

Part Number: EMUTE213324.0100 0.039 x 0.157 x 0.303 x 2.165 ISO: TE213324.0100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1104915

Description

EMUGE 33994 Carbide Drill Shank 0.1574 TiAlN 0.0394 1.00MM Drill Dia140°Coolant Thru 6.0XD 2.1650 54.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.1654 55.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0394 1.00MM
Length Of Cut 0.3030 7.70MM
Flute Length 2.1650 54.99MM
Dia Deep 6.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Cut Dia Min 0.0394 1.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
