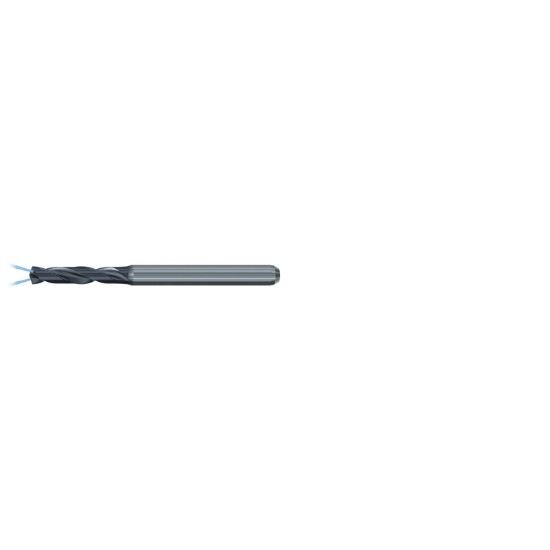

Picture of Emuge TE213324.0095 Carbide Drill Coolant Thru Carbide 140° 0.037 Diameter 0.118 Shank 2.027 OAL 2.165 Flute 2 Flute TiAlN

Emuge TE213324.0095 Carbide Drill Coolant Thru Carbide 140° 0.037 Diameter 0.118 Shank 2.027 OAL 2.165 Flute 2 Flute TiAlN

Part Number: EMUTE213324.0095 0.037 x 0.118 x 0.287 x 2.028 ISO: TE213324.0095
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1104914

Description

EMUGE 33993 Carbide Drill Shank 0.1181 TiAlN 0.0374 0.95MM Drill Dia140°Coolant Thru 6.0XD 2.1650 54.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.0276 51.50MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0374 0.95MM
Length Of Cut 0.2874 7.30MM
Flute Length 2.1650 54.99MM
Dia Deep 6.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Cut Dia Min 0.0374 0.95MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
