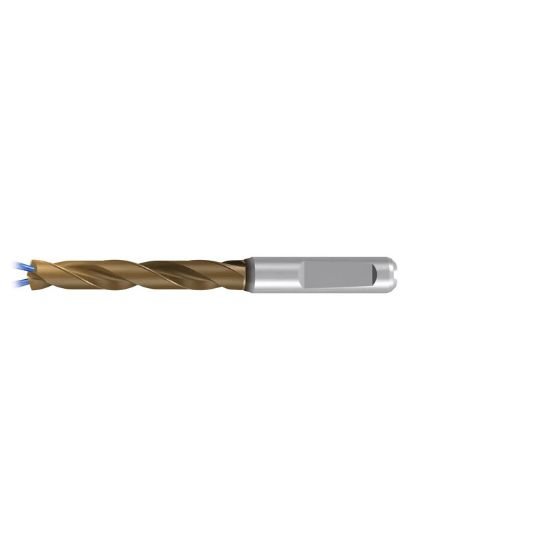

Emuge TA514524.1429 Carbide Drill Coolant Thru Carbide 140° 0.562 Diameter 0.629 Shank 4.881 OAL 3.031 Flute 2 Flute AlCrN

Part Number: EMUTA514524.1429 ISO: TA514524.1429

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1105663
Call (262) 251-4020 for pricing
EMUGE 32074 Carbide Drill Shank 0.6299 AlCrN 0.5625 14.29MM - 9/16 Drill Dia140°Coolant Thru 5.0XD 3.0310 76.99MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, High Temp, Titanium
Coating ALCrN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.8819 124.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Type Of Tool Drill
Included Angle 140°
Flute Length 3.0310 76.99MM
Cut Dia Min 0.5625 14.29MM - 9/16
Dia Deep 5.0x Dia
