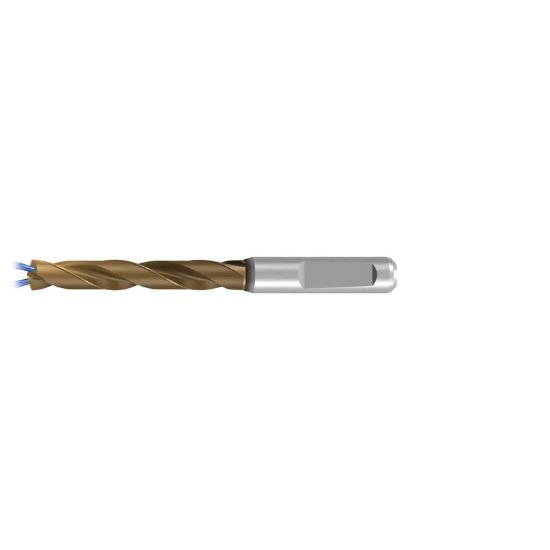

Emuge TA514524.0880 Carbide Drill Coolant Thru Carbide 140° 0.346 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute AlCrN

Part Number: EMUTA514524.0880 ISO: TA514524.0880

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1105598
Call (262) 251-4020 for pricing
EMUGE 32014 Carbide Drill Shank 0.3937 AlCrN 0.3465 8.80MM Drill Dia140°Coolant Thru 5.0XD 2.4020 61.01MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, High Temp, Titanium
Coating ALCrN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 4.0551 103.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3465 8.80MM
Type Of Tool Drill
Included Angle 140°
Flute Length 2.4020 61.01MM
Cut Dia Min 0.3465 8.80MM
Dia Deep 5.0x Dia
