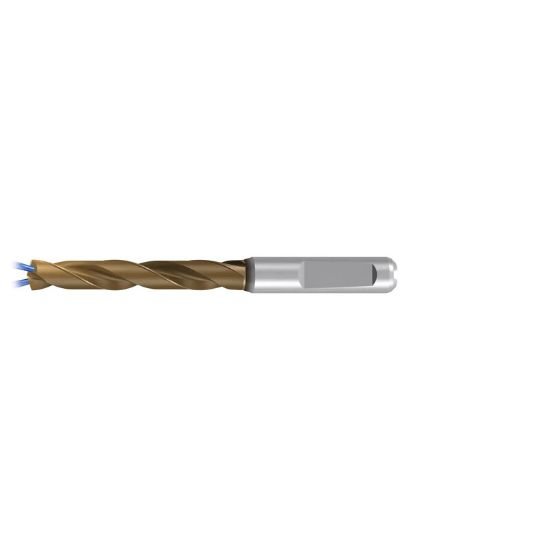

Emuge TA514524.0290 Carbide Drill Coolant Thru Carbide 140° 0.114 Diameter 0.236 Shank 2.401 OAL 0.866 Flute 2 Flute AlCrN

Part Number: EMUTA514524.0290 ISO: TA514524.0290

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1105510
Call (262) 251-4020 for pricing
EMUGE 32687 Carbide Drill Shank 0.2362 AlCrN 0.1142 2.90MM Drill Dia140°Coolant Thru 5.0XD 0.8660 22.00MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, High Temp, Titanium
Coating ALCrN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.4016 61.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1142 2.90MM
Type Of Tool Drill
Included Angle 140°
Flute Length 0.8660 22.00MM
Cut Dia Min 0.1142 2.90MM
Dia Deep 5.0x Dia
