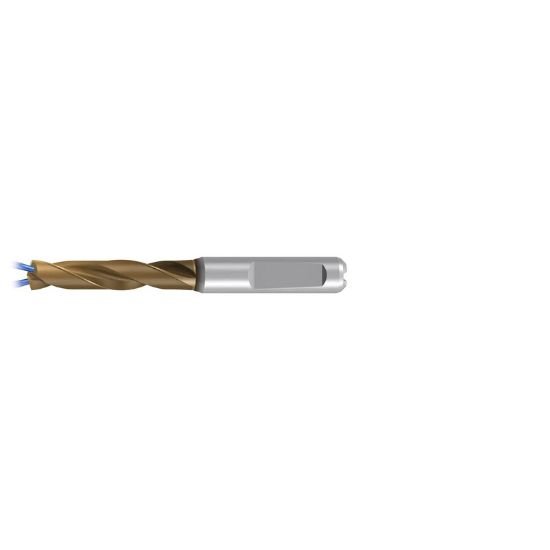

Emuge TA504524.1500 Carbide Drill Coolant Thru Carbide 140° 0.590 Diameter 0.629 Shank 5.236 OAL 3.268 Flute 2 Flute AlCrN

Part Number: EMUTA504524.1500 ISO: TA504524.1500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1105301
Call (262) 251-4020 for pricing
EMUGE 33020 Carbide Drill Shank 0.6299 AlCrN 0.5906 15.00MM Drill Dia140°Coolant Thru 3.0XD 3.2680 83.01MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, High Temp, Titanium
Coating ALCrN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.2362 133.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Included Angle 140°
Flute Length 3.2680 83.01MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 3.0x Dia
