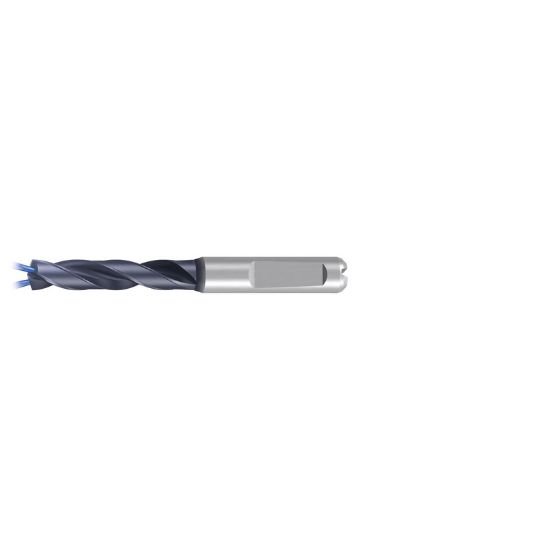

Emuge TA503344.0610 Carbide Drill Coolant Thru Carbide 140° 0.240 Diameter 0.315 Shank 3.110 OAL 1.339 Flute 2 Flute AlCrN

Part Number: EMUTA503344.0610 ISO: TA503344.0610
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1104228

Description

EMUGE 32736 Carbide Drill Shank 0.3150 AlCrN 0.2402 6.10MM Drill Dia140°Coolant Thru 3.0XD 1.3390 34.01MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2402 6.10MM
Flute Length 1.3390 34.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.2402 6.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
