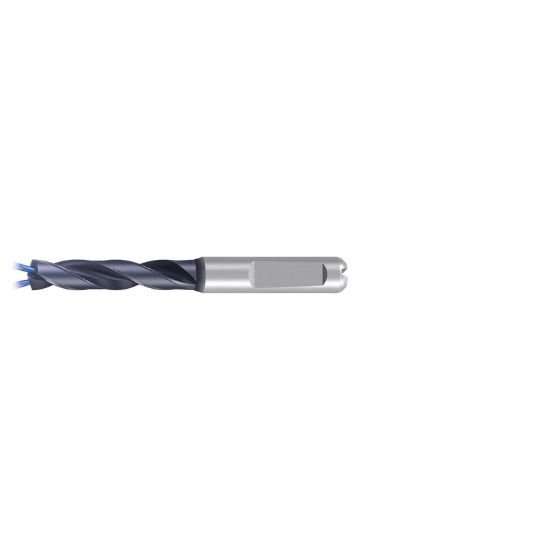

Emuge TA503344.0500 Carbide Drill Coolant Thru Carbide 140° 0.196 Diameter 0.236 Shank 2.598 OAL 1.102 Flute 2 Flute AlCrN

Part Number: EMUTA503344.0500 ISO: TA503344.0500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1104212
Call (262) 251-4020 for pricing
EMUGE 31767 Carbide Drill Shank 0.2362 AlCrN 0.1969 5.00MM Drill Dia140°Coolant Thru 3.0XD 1.1020 27.99MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Coating ALCrN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.5984 66.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.1020 27.99MM
Cut Dia Min 0.1969 5.00MM
Dia Deep 3.0x Dia
