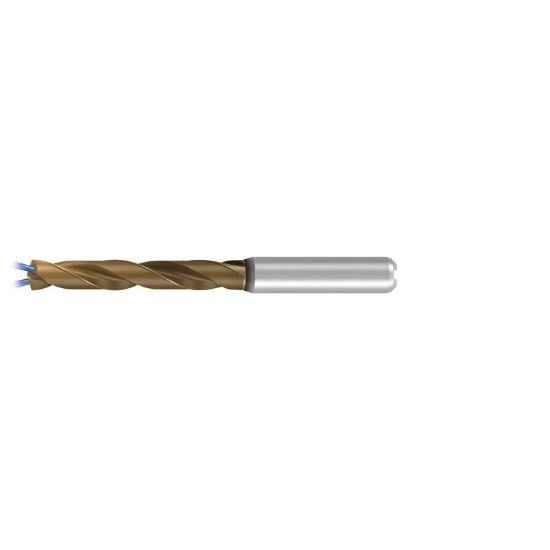

Picture of Emuge TA214524.1150 Carbide Drill Coolant Thru Carbide 140° 0.452 Diameter 0.472 Shank 4.881 OAL 3.031 Flute 2 Flute AlCrN

Emuge TA214524.1150 Carbide Drill Coolant Thru Carbide 140° 0.452 Diameter 0.472 Shank 4.881 OAL 3.031 Flute 2 Flute AlCrN

Part Number: EMUTA214524.1150 ISO: TA214524.1150
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$434.49
SKU: 1105457

Description

EMUGE 32632 Carbide Drill Shank 0.4724 AlCrN 0.4528 11.50MM Drill Dia140°Coolant Thru 5.0XD 3.0310 76.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8819 124.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4528 11.50MM
Flute Length 3.0310 76.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.4528 11.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
