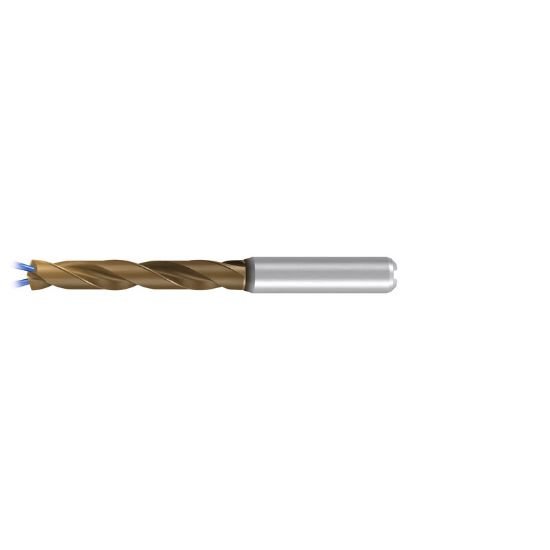

Picture of Emuge TA214524.1120 Carbide Drill Coolant Thru Carbide 140° 0.440 Diameter 0.472 Shank 4.645 OAL 2.795 Flute 2 Flute AlCrN

Emuge TA214524.1120 Carbide Drill Coolant Thru Carbide 140° 0.440 Diameter 0.472 Shank 4.645 OAL 2.795 Flute 2 Flute AlCrN

Part Number: EMUTA214524.1120 ISO: TA214524.1120
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$434.49
SKU: 1105451

Description

EMUGE 32626 Carbide Drill Shank 0.4724 AlCrN 0.4409 11.20MM Drill Dia140°Coolant Thru 5.0XD 2.7950 70.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.6457 118.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4409 11.20MM
Flute Length 2.7950 70.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.4409 11.20MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
