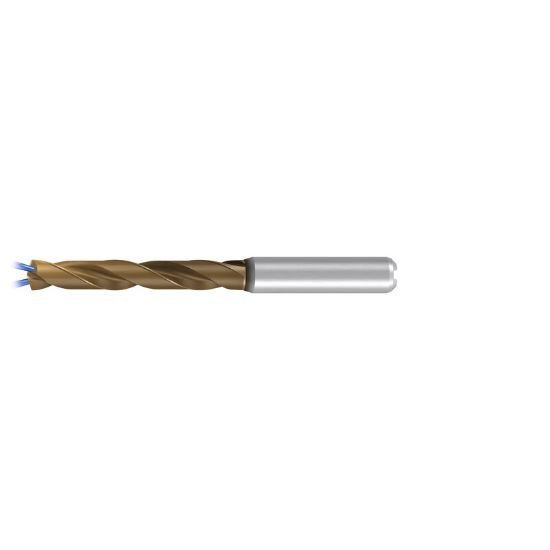

Picture of Emuge TA214524.0970 Carbide Drill Coolant Thru Carbide 140° 0.381 Diameter 0.393 Shank 4.645 OAL 2.795 Flute 2 Flute AlCrN

Emuge TA214524.0970 Carbide Drill Coolant Thru Carbide 140° 0.381 Diameter 0.393 Shank 4.645 OAL 2.795 Flute 2 Flute AlCrN

Part Number: EMUTA214524.0970 ISO: TA214524.0970
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$372.28
SKU: 1105429

Description

EMUGE 32607 Carbide Drill Shank 0.3937 AlCrN 0.3819 9.70MM Drill Dia140°Coolant Thru 5.0XD 2.7950 70.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.6457 118.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3819 9.70MM
Flute Length 2.7950 70.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.3819 9.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
