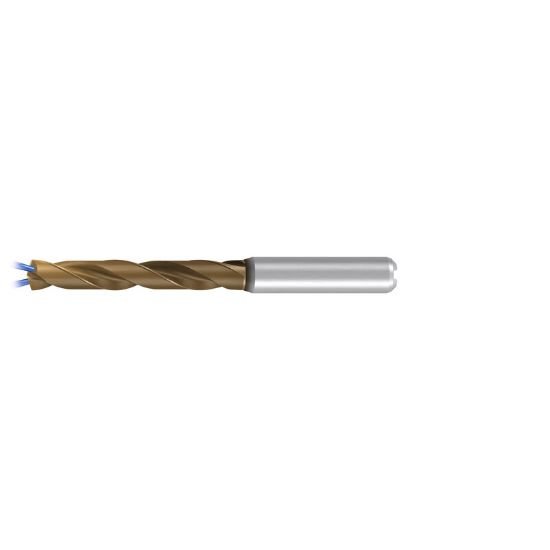

Picture of Emuge TA214524.0870 Carbide Drill Coolant Thru Carbide 140° 0.342 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute AlCrN

Emuge TA214524.0870 Carbide Drill Coolant Thru Carbide 140° 0.342 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute AlCrN

Part Number: EMUTA214524.0870 ISO: TA214524.0870
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$315.71
SKU: 1105413

Description

EMUGE 32592 Carbide Drill Shank 0.3937 AlCrN 0.3425 8.70MM Drill Dia140°Coolant Thru 5.0XD 2.4020 61.01MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0551 103.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3425 8.70MM
Flute Length 2.4020 61.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.3425 8.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
