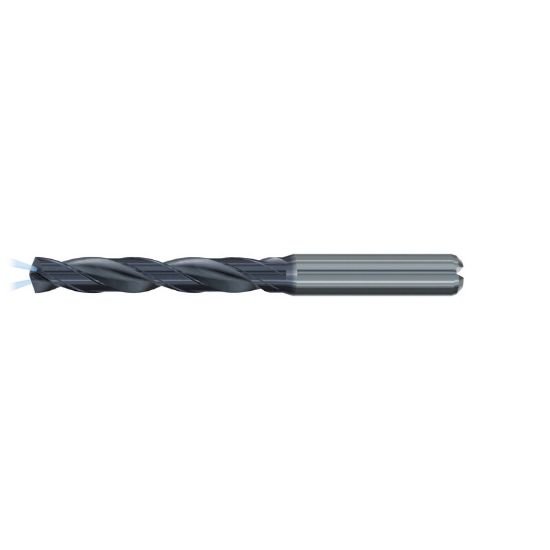

Picture of Emuge TA213344.1280 Carbide Drill Coolant Thru Carbide 140° 0.504 Diameter 0.551 Shank 4.881 OAL 3.031 Flute 2 Flute TiAlN

Emuge TA213344.1280 Carbide Drill Coolant Thru Carbide 140° 0.504 Diameter 0.551 Shank 4.881 OAL 3.031 Flute 2 Flute TiAlN

Part Number: EMUTA213344.1280 ISO: TA213344.1280
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1104505
Vendor: Sussex Tool and Supply
$394.87

Description

EMUGE 32265 Carbide Drill Shank 0.5512 TiAlN 0.5040 12.80MM Drill Dia140°Coolant Thru 5.0XD 3.0310 76.99MM Flute Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8819 124.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5040 12.80MM
Flute Length 3.0310 76.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.5040 12.80MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
