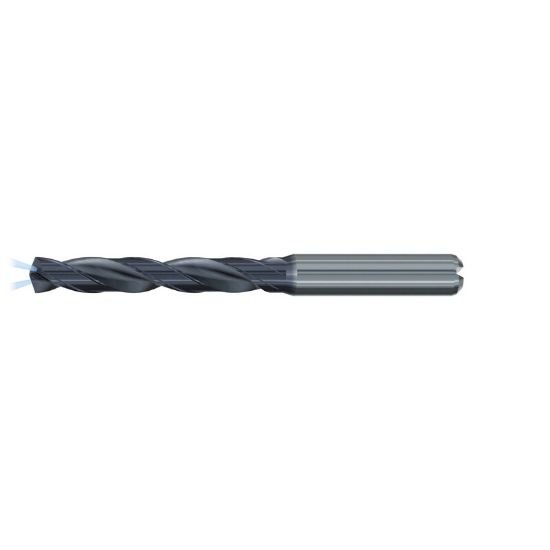

Picture of Emuge TA213344.1025 Carbide Drill Coolant Thru Carbide 140° 0.403 Diameter 0.472 Shank 4.645 OAL 2.795 Flute 2 Flute TiAlN

Emuge TA213344.1025 Carbide Drill Coolant Thru Carbide 140° 0.403 Diameter 0.472 Shank 4.645 OAL 2.795 Flute 2 Flute TiAlN

Part Number: EMUTA213344.1025 ISO: TA213344.1025
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$400.64
SKU: 1104469

Description

EMUGE 32232 Carbide Drill Shank 0.4724 TiAlN 0.4035 10.25MM Drill Dia140°Coolant Thru 5.0XD 2.7950 70.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.6457 118.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4035 10.25MM
Flute Length 2.7950 70.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.4035 10.25MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
