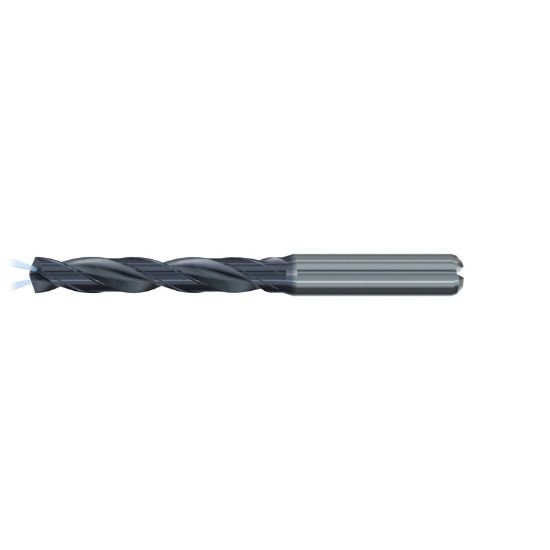

Picture of Emuge TA213344.0905 Carbide Drill Coolant Thru Carbide 140° 0.356 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute TiAlN

Emuge TA213344.0905 Carbide Drill Coolant Thru Carbide 140° 0.356 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute TiAlN

Part Number: EMUTA213344.0905 ISO: TA213344.0905
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$338.81
SKU: 1104451

Description

EMUGE 32215 Carbide Drill Shank 0.3937 TiAlN 0.3563 9.05MM Drill Dia140°Coolant Thru 5.0XD 2.4020 61.01MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0551 103.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3563 9.05MM
Flute Length 2.4020 61.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.3563 9.05MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
