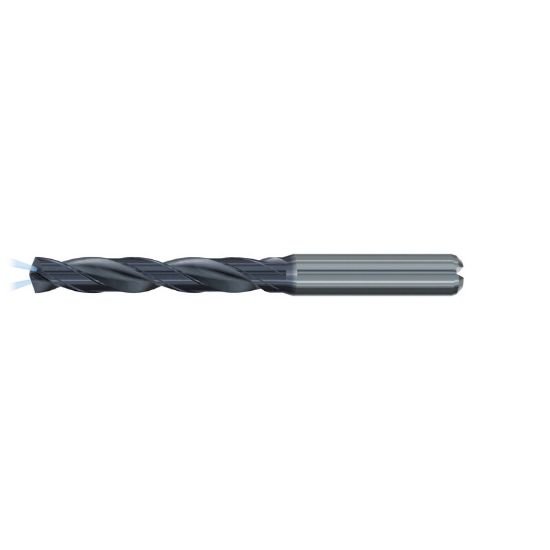

Picture of Emuge TA213344.0830 Carbide Drill Coolant Thru Carbide 140° 0.326 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute TiAlN

Emuge TA213344.0830 Carbide Drill Coolant Thru Carbide 140° 0.326 Diameter 0.393 Shank 4.055 OAL 2.402 Flute 2 Flute TiAlN

Part Number: EMUTA213344.0830 ISO: TA213344.0830
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$300.65
SKU: 1104440

Description

EMUGE 32204 Carbide Drill Shank 0.3937 TiAlN 0.3268 8.30MM Drill Dia140°Coolant Thru 5.0XD 2.4020 61.01MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0551 103.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3268 8.30MM
Flute Length 2.4020 61.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.3268 8.30MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
Only registered users can write reviews
