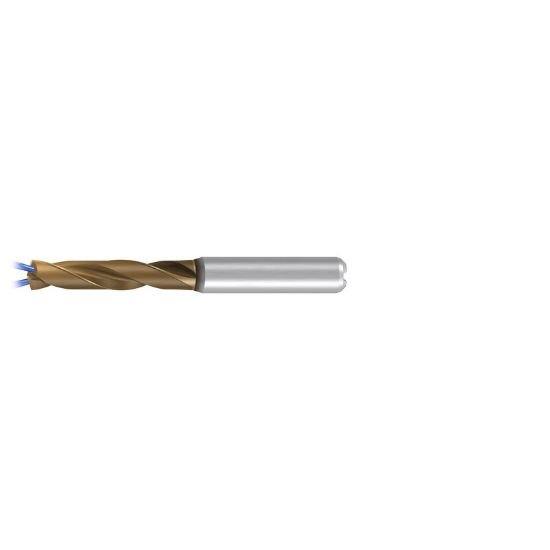

Picture of Emuge TA204524.1350 Carbide Drill Coolant Thru Carbide 140° 0.531 Diameter 0.551 Shank 4.527 OAL 2.559 Flute 2 Flute AlCrN

Emuge TA204524.1350 Carbide Drill Coolant Thru Carbide 140° 0.531 Diameter 0.551 Shank 4.527 OAL 2.559 Flute 2 Flute AlCrN

Part Number: EMUTA204524.1350 ISO: TA204524.1350
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1105112
Vendor: Sussex Tool and Supply
$414.40

Description

EMUGE 31890 Carbide Drill Shank 0.5512 AlCrN 0.5315 13.50MM Drill Dia140°Coolant Thru 3.0XD 2.5590 65.00MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.5276 115.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Flute Length 2.5590 65.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.5315 13.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
