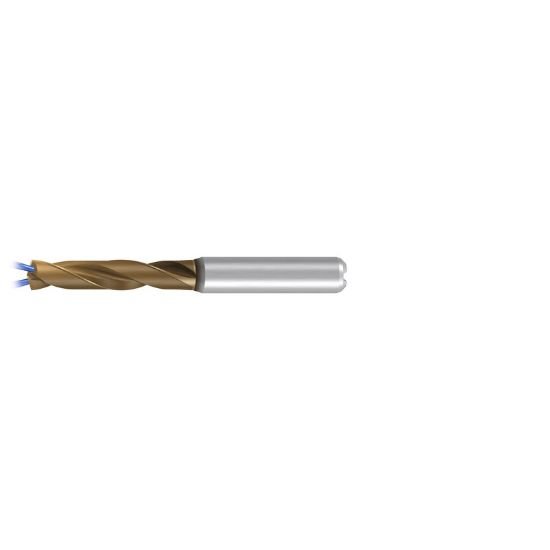

Picture of Emuge TA204524.1280 Carbide Drill Coolant Thru Carbide 140° 0.504 Diameter 0.551 Shank 4.527 OAL 2.559 Flute 2 Flute AlCrN

Emuge TA204524.1280 Carbide Drill Coolant Thru Carbide 140° 0.504 Diameter 0.551 Shank 4.527 OAL 2.559 Flute 2 Flute AlCrN

Part Number: EMUTA204524.1280 ISO: TA204524.1280
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$511.57
SKU: 1105105

Description

EMUGE 31883 Carbide Drill Shank 0.5512 AlCrN 0.5040 12.80MM Drill Dia140°Coolant Thru 3.0XD 2.5590 65.00MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.5276 115.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5040 12.80MM
Flute Length 2.5590 65.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.5040 12.80MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
