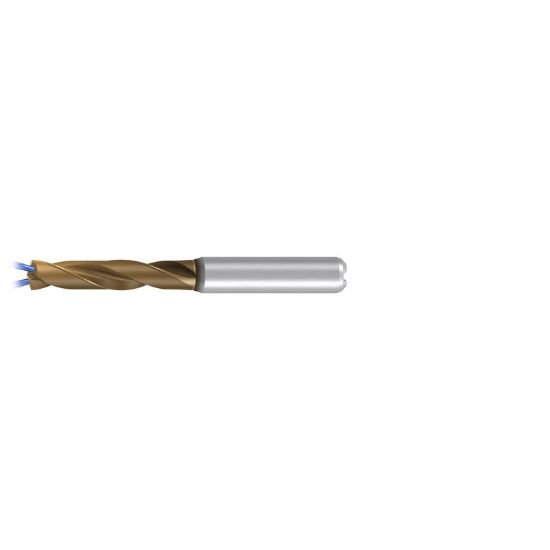

Picture of Emuge TA204524.1220 Carbide Drill Coolant Thru Carbide 140° 0.480 Diameter 0.551 Shank 4.015 OAL 2.165 Flute 2 Flute AlCrN

Emuge TA204524.1220 Carbide Drill Coolant Thru Carbide 140° 0.480 Diameter 0.551 Shank 4.015 OAL 2.165 Flute 2 Flute AlCrN

Part Number: EMUTA204524.1220 ISO: TA204524.1220
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1105099
Vendor: Sussex Tool and Supply
$378.95

Description

EMUGE 31877 Carbide Drill Shank 0.5512 AlCrN 0.4803 12.20MM Drill Dia140°Coolant Thru 3.0XD 2.1650 54.99MM Flute Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.4803 12.20MM
Flute Length 2.1650 54.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.4803 12.20MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
