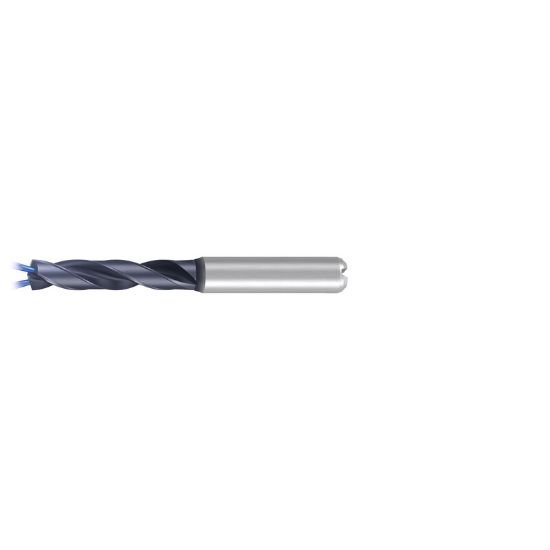

Picture of Emuge TA203344.1460 Carbide Drill Coolant Thru Carbide 140° 0.574 Diameter 0.629 Shank 4.527 OAL 2.559 Flute 2 Flute TiAlN

Emuge TA203344.1460 Carbide Drill Coolant Thru Carbide 140° 0.574 Diameter 0.629 Shank 4.527 OAL 2.559 Flute 2 Flute TiAlN

Part Number: EMUTA203344.1460 ISO: TA203344.1460
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1104155
Vendor: Sussex Tool and Supply
$421.03

Description

EMUGE 31710 Carbide Drill Shank 0.6299 TiAlN 0.5748 14.60MM Drill Dia140°Coolant Thru 3.0XD 2.5590 65.00MM Flute Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.5276 115.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5748 14.60MM
Flute Length 2.5590 65.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.5748 14.60MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
