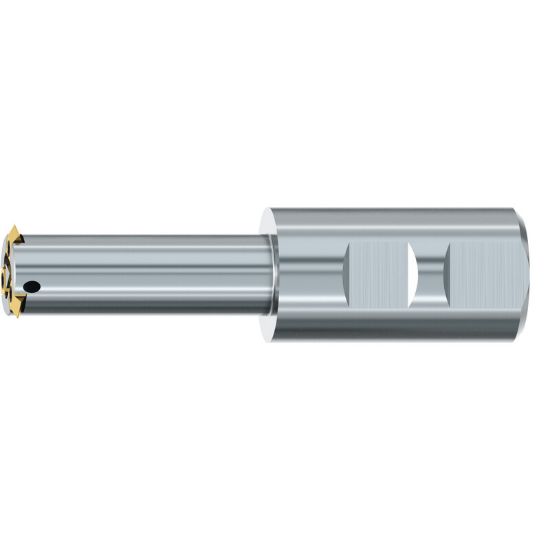

EMUGE GZ341121 #11 Body - M30 - 60 mm Depth

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGZ341121
Delivery date: 3-5 days
$522.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Thread Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cutter Dia 1.1024 28.00MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.2598 32.00MM
Overall Len 4.8031 122.00MM
Tool Material Steel
Cut Rating <40HRC, Stainless, Iron, High Temp
Shank/Pilot Dia 1.2598 32.00MM
Length Of Cut 2.3622 60.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Energy Yes
