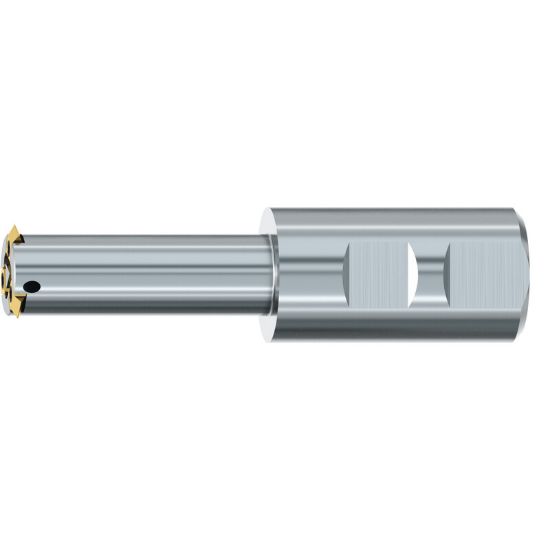

EMUGE GZ341001 #11 Body - M30 - 80 mm Depth / L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGZ341001
Delivery date: 3-5 days
$582.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Application Thread Milling
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Type Weldon
Overall Len 5.5906 142.00MM
Length Of Cut 3.1496 80.00MM
Cutter Dia 0.9390 23.85MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Industry-Specific Applications
Energy Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Automotive Yes
