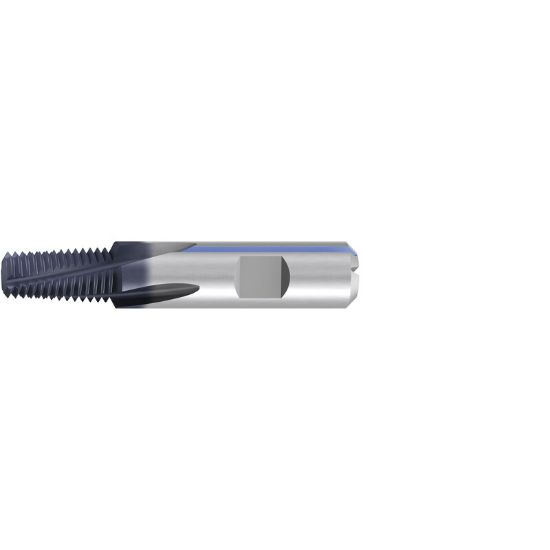

EMUGE GFT8B219.9677 Carbide Thread Mill 1/4"-3/8" x 18.00TPI 0.400 Cutter Diameter 3.250 OAL 4 Flute Carbide TIALN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFT8B219.9677
Delivery date: 3-5 days
$392.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Thread Milling
Made In USA No
Coating TiAlN
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 18.00TPI
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Cutter Dia 0.4000 10.16MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Thread Size 1/4"-3/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
