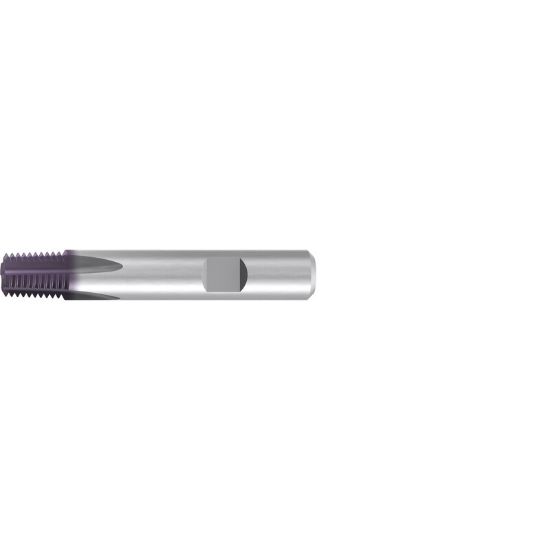

EMUGE GFT53AA6.5763 Carbide Thread Mill 1/16"-1/8" x 27.00TPI 0.232 Cutter Diameter 0.390 LOC 2.500 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFT53AA6.5763
Delivery date: 3-5 days
$241.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Dimensional Specifications
Thread Pitch 27.00TPI
Cutter Dia 0.2320 5.89MM
Tool Material Powder Metal
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Length Of Cut 0.3900 9.91MM
Thread Size 1/16"-1/8
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
