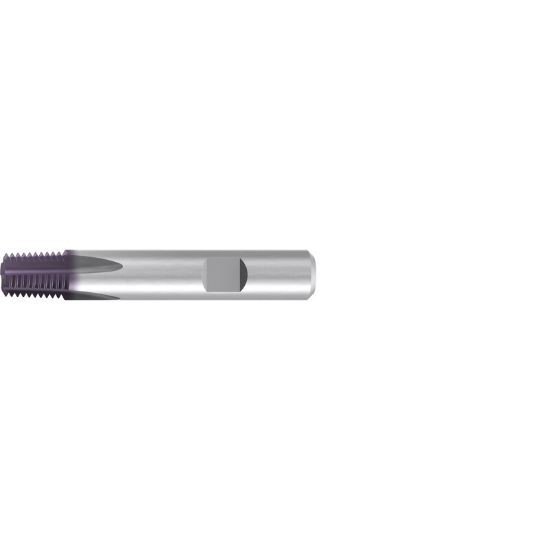

EMUGE GFT53A06.9677 Carbide Thread Mill 1/4"-3/8" x 18.00TPI 0.307 Cutter Diameter 0.580 LOC 2.500 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFT53A06.9677
Delivery date: 3-5 days
$260.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Application Thread Milling
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Pitch 18.00TPI
Cutter Dia 0.3070 7.80MM
Overall Len 2.5000 63.50MM
Length Of Cut 0.5800 14.73MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Size 1/4"-3/8
Machine Side Connection Size 0.3125 7.94MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Energy Yes
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
