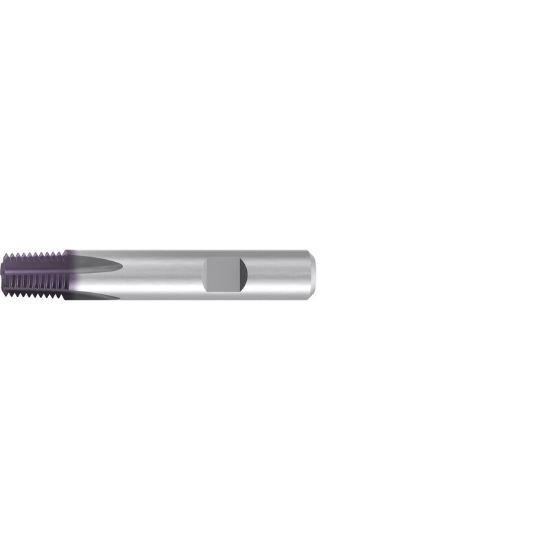

Picture of Emuge GFT53116.5765 Carbide Thread Mill 1/4-1/8" x 18.00TPI 0.400 Cutter Diameter 0.583 LOC 3.250 OAL 4 Flute Carbide TICN

Emuge GFT53116.5765 Carbide Thread Mill 1/4-1/8" x 18.00TPI 0.400 Cutter Diameter 0.583 LOC 3.250 OAL 4 Flute Carbide TICN

Part Number: EMUGFT53116.5765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1294277
Vendor: Sussex Tool and Supply
$380.31
EMUGE Solid Rounds Mill Thread GF Pipe Threads Carbide TICN Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TICN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.2500 82.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.4000 10.16MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.5830 14.81MM
Thread Pitch 18.00TPI
Thread Size 1/4"-1/8
