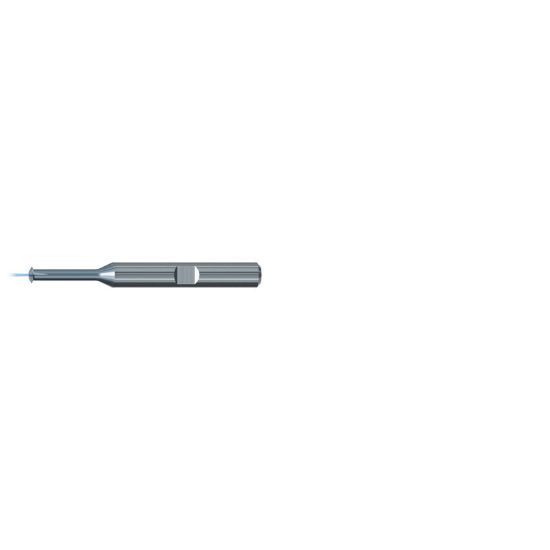

EMUGE GFS83106.5012 Carbide Thread Mill 7/16" x14.00TPI Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFS83106.5012
Delivery date: 3-5 days
$350.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 1.3120 33.32MM
Thread Size 7/16"
Overall Len 3.1250 79.38MM
Thread Pitch 14.00TPI
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Energy Yes
Medical Yes
Aerospace Yes
Job Shop Yes
