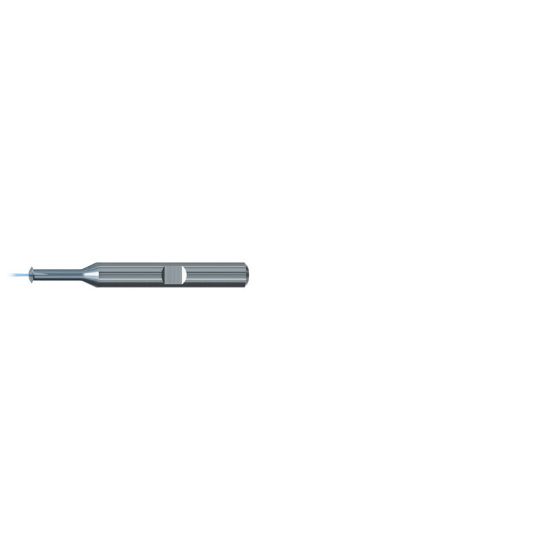

EMUGE GFS33106.5015 Carbide Thread Mill 5/8" x11.00TPI - 18.00TPI Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFS33106.5015
Delivery date: 3-5 days
$308.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Coating TiCN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.7500 95.25MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.2500 31.75MM
Thread Size 5/8"
Machine Side Connection Size 0.5000 12.70MM
Thread Pitch 11.00TPI - 18.00TPI
Cutter Dia 0.5120 13.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Medical Yes
Energy Yes
