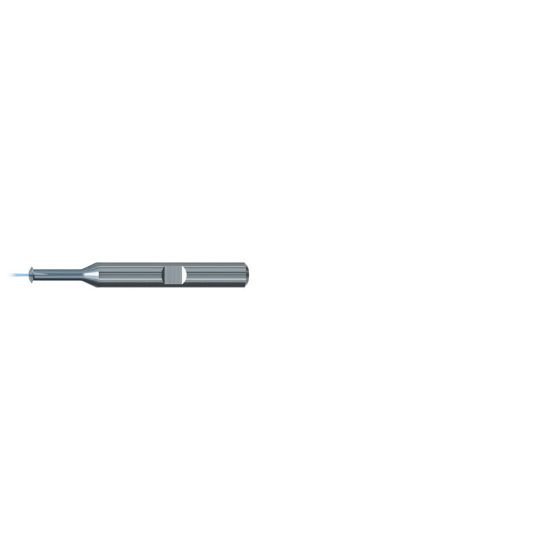

Picture of Emuge GFS33106.5016 Carbide Thread Mill 3/4" x10.00TPI - 16.00TPI Carbide TICN

Emuge GFS33106.5016 Carbide Thread Mill 3/4" x10.00TPI - 16.00TPI Carbide TICN

Part Number: EMUGFS33106.5016
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1294884
Vendor: Sussex Tool and Supply
$443.68

Description

EMUGE Solid Rounds Mill Thread THREADS-ALL™ Carbide TICN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Thru Coolant
Type Of Tool Thread Mill
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 6
Tool Dia 0.6300 16.00MM
Length Of Cut 1.5000 38.10MM
Thread Pitch 10.00TPI - 16.00TPI
Thread Size 3/4"
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
