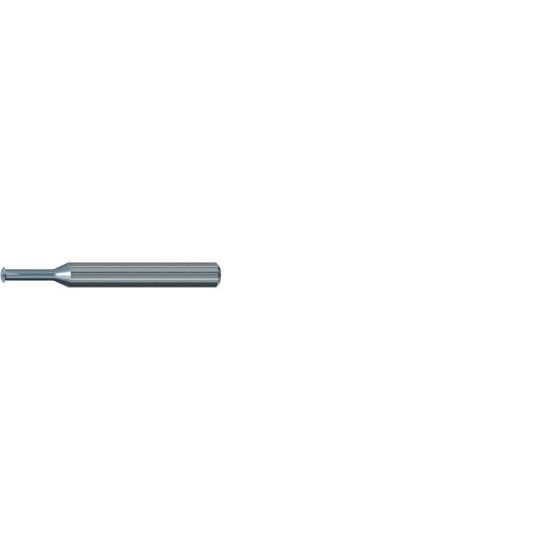

Picture of Emuge GFS23706.5003 Carbide Thread Mill #4 x40.00TPI - 48.00TPI Carbide TICN

Emuge GFS23706.5003 Carbide Thread Mill #4 x40.00TPI - 48.00TPI Carbide TICN

Part Number: EMUGFS23706.5003
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$183.31
SKU: 1294875

Description

EMUGE Solid Rounds Mill Thread THREADS-ALL™ Carbide TICN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Dimensions & Sizing
Overall Length 1.6250 41.28MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0810 2.06MM - #46
Length Of Cut 0.2240 5.69MM
Thread Pitch 40.00TPI - 48.00TPI
Thread Size No.4
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
