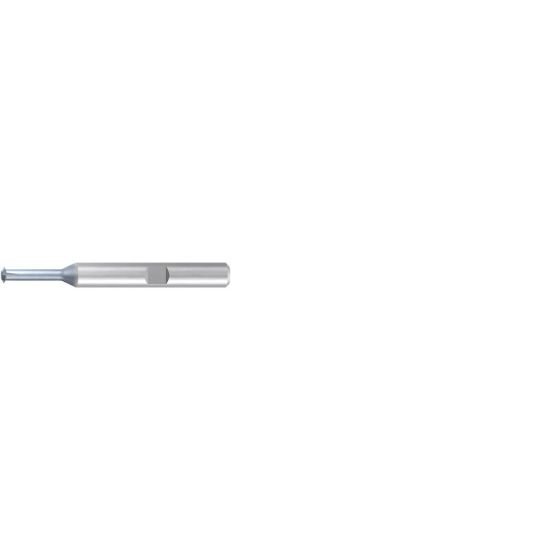

Picture of Emuge GFS23106.5007 Carbide Thread Mill #10 x24.00TPI - 32.00TPI Carbide TICN

Emuge GFS23106.5007 Carbide Thread Mill #10 x24.00TPI - 32.00TPI Carbide TICN

Part Number: EMUGFS23106.5007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1294871
Vendor: Sussex Tool and Supply
$182.20
EMUGE Solid Rounds Mill Thread THREADS-ALL™ Carbide TICN Powder Metal
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Mill Thread
Tool Material Powder Metal
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TICN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.1360 3.45MM - #29
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.3800 9.65MM
Thread Pitch 24.00TPI - 32.00TPI
Thread Size No.10
