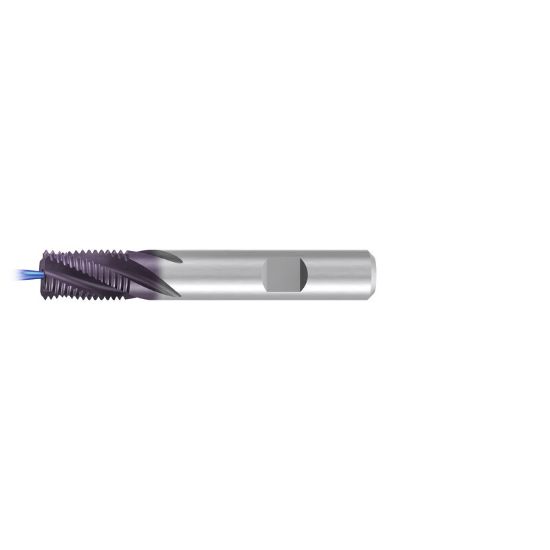

EMUGE GFR35106.5044 Carbide Thread Mill 5/16 " x24.00TPI Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFR35106.5044
Delivery date: 3-5 days
$288.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiCN
Shipping State Massachusetts
Performance Rating High Performance
Application Thread Milling
Made In USA No
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.2460 6.25MM - D
Tool Material Powder Metal
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.6440 16.36MM
Overall Len 2.5000 63.50MM
Thread Pitch 24.00TPI
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Thread Size 5/16"
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
