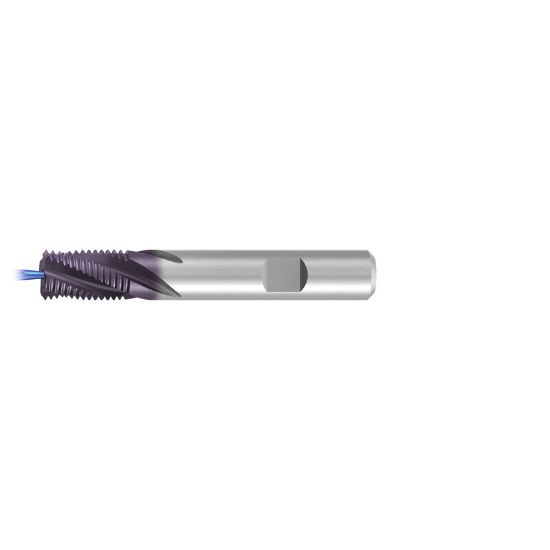

EMUGE GFR35106.5015 Carbide Thread Mill 5/8" x11.00TPI Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFR35106.5015
Delivery date: 3-5 days
$437.58

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Thread Milling
Dimensional Specifications
Thread Size 5/8"
Cutter Dia 0.4960 12.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.7500 95.25MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.3160 33.43MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Thread Pitch 11.00TPI
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
