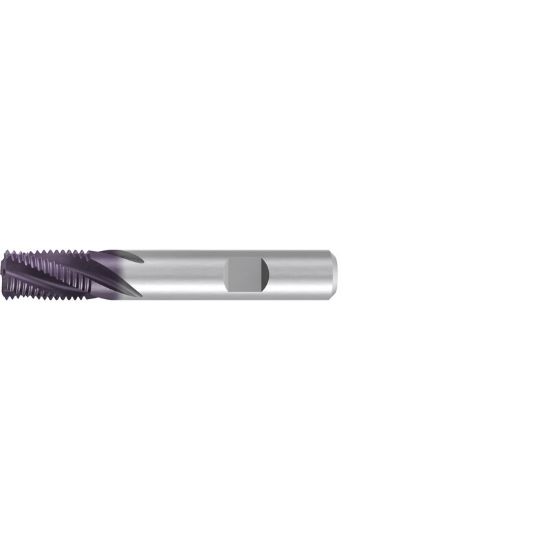

EMUGE GFR15106.5010 Carbide Thread Mill 5/16" x18.00TPI Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFR15106.5010
Delivery date: 3-5 days
$265.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Application Thread Milling
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Thread Pitch 18.00TPI
Overall Len 2.5000 63.50MM
Cutter Dia 0.2420 6.15MM - C
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.6370 16.18MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Size 5/16"
Tool Material Powder Metal
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
