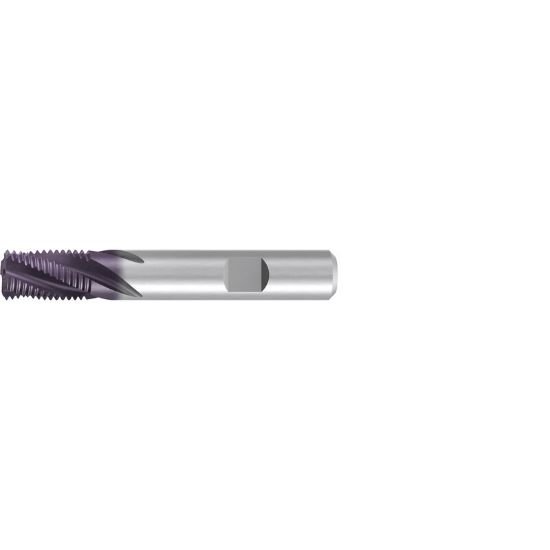

Picture of Emuge GFR15106.5009 Carbide Thread Mill 1/4" x20.00TPI Carbide TICN

Emuge GFR15106.5009 Carbide Thread Mill 1/4" x20.00TPI Carbide TICN

Part Number: EMUGFR15106.5009
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1294697
Vendor: Sussex Tool and Supply
$345.72

Description

EMUGE Solid Rounds Mill Thread SHUR-THREAD™ Carbide TICN Powder Metal
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.1850 4.70MM - #13
Length Of Cut 0.5240 13.31MM
Thread Pitch 20.00TPI
Thread Size 1/4"
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Powder Metal
Cutting Edge Mat Carbide
Coating TICN
