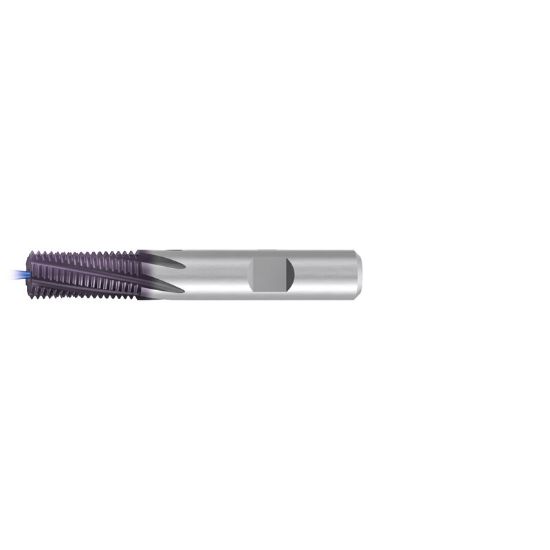

EMUGE GFB35106.5048 Carbide Thread Mill 9/16" x18.00TPI Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGFB35106.5048
Delivery date: 3-5 days
$883.94

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Dimensional Specifications
Overall Len 3.3500 85.09MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.5512 14.00MM
Thread Pitch 18.00TPI
Cutter Dia 0.4921 12.50MM
Shank/Pilot Dia 0.5512 14.00MM
Thread Size 9/16"
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Energy Yes
Medical Yes
